Hardware Options

At Serenity, we’re all about helping you find the perfect configuration for your system. That’s why we provide near-endless hardware options to meet your project requirements. Customize to the needs of your facility.

Back to Back Ladder Pull

Levers

Lever Finishes

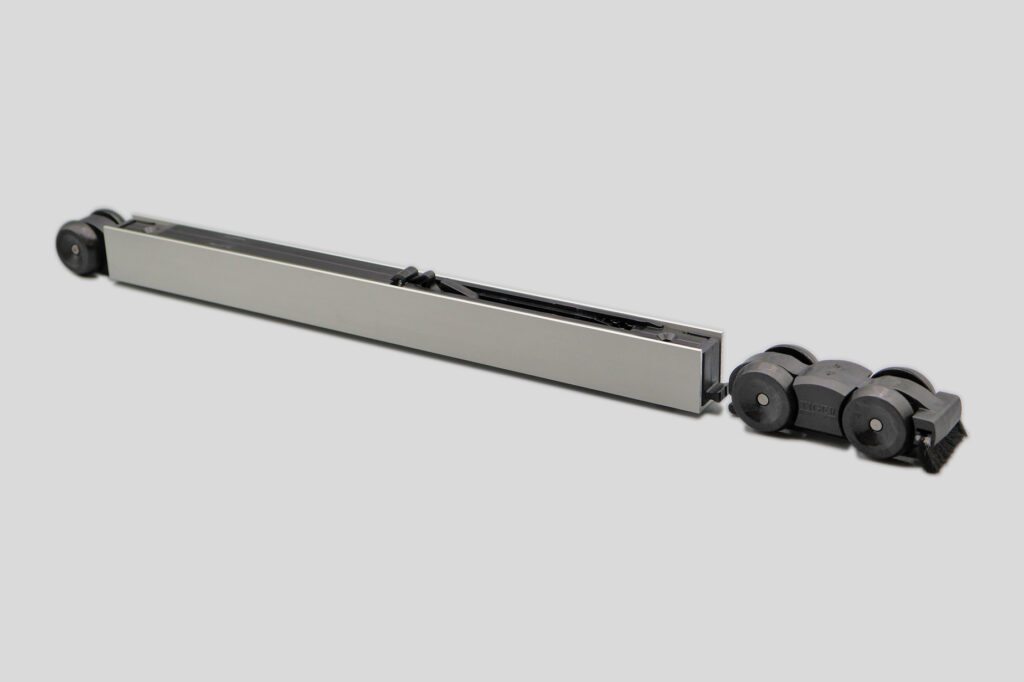

Soft Close

Our standard system uses a soft close to bring the door to a smooth and quiet controlled stop when closing. Made of thick sturdy nylon and slam tested, this part has completed over 100,000 cycle tests.

Spring Close

A spring close uses a self-closing mechanism to automatically pull the door to a closed position. Combined with a self-latching lock, your system can close and lock automatically for added security and ease of use.

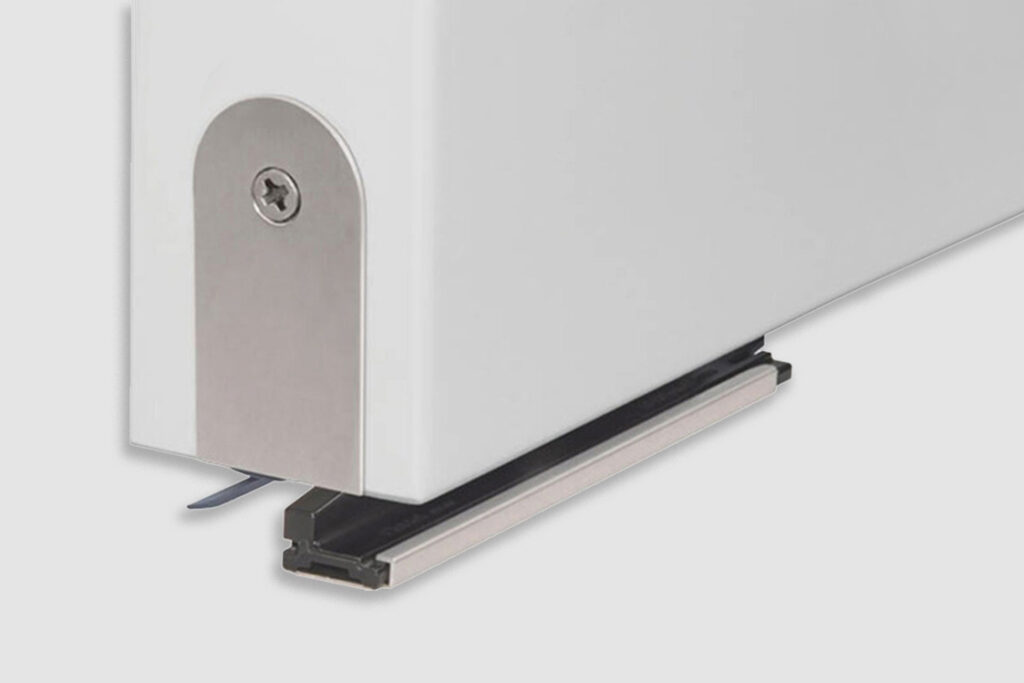

Auto Door Bottom

An auto door bottom can be used to reach an STC 35 rating. This hardware is fully mortised within the bottom of the door and drops automatically when the door is closed to create a sound seal. Available for surface mount systems only.

Electric Operator

An electric operator is a low-energy self-tensioning pulley and belt system used to open the door automatically through access control hardware. This hardware is fully programmable and offers optional locking. Electric operators can be easily retrofitted to existing systems. Wiring and peripherals by others.

Download our complete list of options below to find what’s right for your project.

SD5310 – Pulls Only

Pulls Only with No Lock Case

Deadlocks

SD5340 – Coin Turn

Privacy with Emergency Release & ADA Thumbturn

SD5340i – Privacy Indicator

Privacy with Emergency Release, Indicator, & ADA Thumbturn

SD5350 – Keyed Lock

Entry with Single Cylinder & ADA Thumbturn

Electrified

SD8035 – Magnetic Lock

Fail-safe, Dual Voltage 12/24 VDC

Auto Latching Mortise Locks

SD9610 – Passage

• Bolt auto-latches

• Outside and inside levers are always unlocked and retract bolt

SD9640 – Privacy

• Bolt auto-latches

• Inside thumb-turn locks or unlocks outside lever

• Outside emergency coin release unlocks outside lever then outside lever retract bolt

• Inside lever retracts bolt and unlocks outside lever for emergency egress

SD9650 – Office

• Bolt auto-latches

• Outside key or inside thumb-turn locks or unlocks outside lever

• When unlocked, outside lever retractsbolt

• Inside lever retracts bolt for emergency egress and unlocks outside lever

SD9670 – Classroom

• Bolt auto-latches

• Outside key locks or unlocks outside lever

• Inside lever retracts bolt for emergency egress

SD9680 – Storeroom

• Bolt auto locks

• Outside lever is always locked unless unlocked with key; re-locks when key is removed

• Inside lever retracts bolt for emergency egress

Electrified Mortise Locks

SD97PT40 – Privacy

• Deadbolt projected/retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike

• Thumbturn inside throws/retracts deadbolt to lock/unlock door

• Outside emergency coin release unlocks outside lever than outside lever retracts bolt

• Inside lever always unlocks deadbolt for emergency egress

SD97PT50 – Office

• Deadbolt projected/retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike

• Insert and turn key from outside to throw/retract deadbolt to lock/unlock door

• Thumbturn inside throws/retracts deadbolt to lock/unlock door

• Outside lever is rigid at all times

• Inside lever always unlocks deadbolt for emergency egress

Electrified Mortise Locks with Auto Latching

SD97ATL53 – Office/Entrance

• Latchbolt projected/retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike

• Key from outside to throw/retract latchbolt to lock/unlock door

• Thumbturn inside throws/retracts latchbolt to lock/unlock door

• Outside lever is rigid at all times

• Inside lever always unlocks latchbolt for emergency egress

SD97ATL80 – Storeroom

• Latchbolt projected/retracted by built-in stepper motor when energized by 12/24V DC power transferred through contacts on lock and strike

• Key from outside to throw/retract latchbolt to lock/unlock door

• Door cannot be locked from inside

• Outside lever is rigid at all times

• Inside lever always unlocks latchbolt for emergency egress

Clear Open Width	Door Slab Width	Finished Frame Width	Track Width	Rough Opening Width
26	34	31	63	32.5
26.5	34.5	31.5	64	33
27	35	32	65	33.5
27.5	35.5	32.5	66	34
28	36	33	67	34.5
28.5	36.5	33.5	68	35
29	37	34	69	35.5
29.5	37.5	34.5	70	36
30	38	35	71	36.5
30.5	38.5	35.5	72	37
31	39	36	73	37.5
31.5	39.5	36.5	74	38
32	40	37	75	38.5
32.5	40.5	37.5	76	39
33	41	38	77	39.5
33.5	41.5	38.5	78	40
34	42	39	79	40.5
34.5	42.5	39.5	80	41
35	43	40	81	41.5
35.5	43.5	40.5	82	42
36	44	41	83	42.5
36.5	44.5	41.5	84	43
37	45	42	85	43.5
37.5	45.5	42.5	86	44
38	46	43	87	44.5
38.5	46.5	43.5	88	45
39	47	44	89	45.5
39.5	47.5	44.5	90	46
40	48	45	91	46.5
40.5	48.5	45.5	92	47
41	49	46	93	47.5
41.5	49.5	46.5	94	48
*42	*48	*46.5	*95	*48
42	50	47	95	48.5
42.5	50.5	47.5	96	49
43	51	48	97	49.5
43.5	51.5	48.5	98	50
44	52	49	99	50.5
44.5	52.5	49.5	100	51
45	53	50	101	51.5
45.5	53.5	50.5	102	52
46	54	51	103	52.5
46.5	54.5	51.5	104	53
47	55	52	105	53.5
47.5	55.5	52.5	106	54
48	56	53	107	54.5
48.5	56.5	53.5	108	55
49	57	54	109	55.5
49.5	57.5	54.5	110	56
50	58	55	111	56.5
50.5	58.5	55.5	112	57
51	59	56	113	57.5
51.5	59.5	56.5	114	58
52	60	57	115	58.5

Clear Open Height	Door Slab Height	Finished Frame Height	Rough Opening
80	80	80	81
80.5	80.5	80.5	81.5
81	81	81	82
81.5	81.5	81.5	82.5
82	82	82	83
82.5	82.5	82.5	83.5
83	83	83	84
83.5	83.5	83.5	84.5
84	84	84	85
84.5	84.5	84.5	85.5
85	85	85	86
85.5	85.5	85.5	86.5
86	86	86	87
86.5	86.5	86.5	87.5
87	87	87	88
87.5	87.5	87.5	88.5
88	88	88	89
88.5	88.5	88.5	89.5
89	89	89	90
89.5	89.5	89.5	90.5
90	90	90	91
90.5	90.5	90.5	91.5
91	91	91	92
91.5	91.5	91.5	92.5
92	92	92	93
92.5	92.5	92.5	93.5
93	93	93	94
93.5	93.5	93.5	94.5
94	94	94	95
94.5	94.5	94.5	95.5
95	95	95	96
95.5	95.5	95.5	96.5
96	96	96	97
96.5	96.5	96.5	97.5
97	97	97	98
97.5	97.5	97.5	98.5
98	98	98	99
98.5	98.5	98.5	99.5
99	99	99	100
99.5	99.5	99.5	100.5
100	100	100	101
100.5	100.5	100.5	101.5
101	101	101	102
101.5	101.5	101.5	102.5
102	102	102	103
102.5	102.5	102.5	103.5
103	103	103	104
103.5	103.5	103.5	104.5
104	104	104	105
104.5	104.5	104.5	105.5
105	105	105	106
105.5	105.5	105.5	106.5
106	106	106	107
106.5	106.5	106.5	107.5
107	107	107	108
107.5	107.5	107.5	108.5
108	108	108	109
