Design

At Serenity, customization is key. In addition to our system standards, we offer a variety of choices to meet your facility needs. Choose from our design options below to craft the perfect system for your project.

This system mounts to the surface of the cased opening frame and offers a barn door look with commercial durability.

This system mounts within the profile of the wall and offers a sleek, modern look.

Finishes - Serenity Sliding Door Systems

Wood Veneer
- Structural Composite Lumber
- Particleboard
Plastic Laminate
Aluminum Stile & Rail
Primed Hardboard
Primed Hollow Metal

We can match the look of your system to virtually any swing door or provide a custom color solution.

Clear Anodized Aluminum
NEW Black Anodized Aluminum
Powder Coating

Your door can be powder coated any color or paired with a wood veneer to match existing wood. To view a complete list of the available veneer and laminate finishes, click here.

Powder Coating
Paint Grade
Wood Veneer
Laminate
- Full array of patterns, solid colors, and wood grain laminates
  - Wilsonart
  - Formica
  - Nevermar
  - Laminart

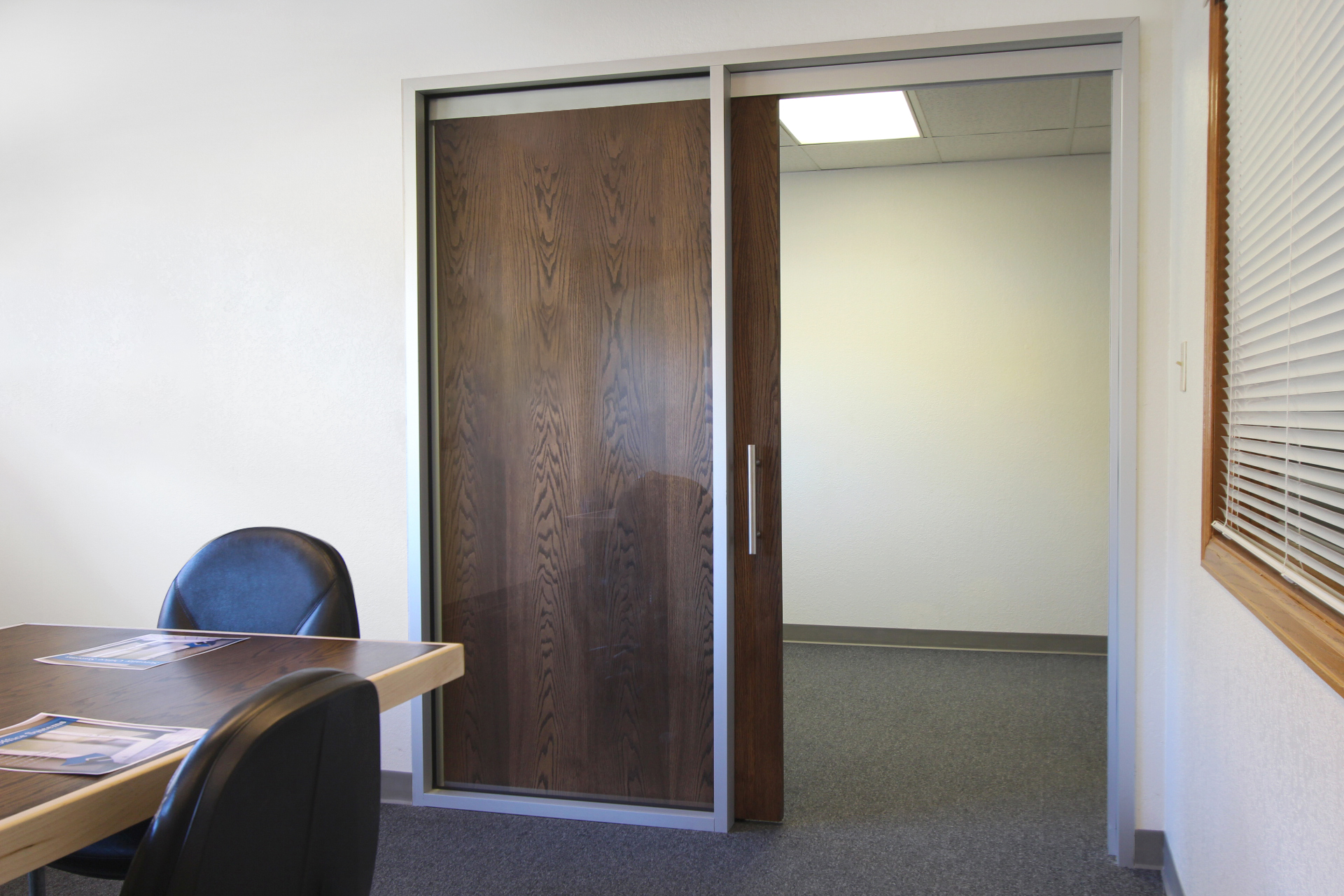

Glazing-Opts - Serenity Sliding Door Systems

Standard glazing options are available upon request. Frames can be provided for sidelites, transoms, and window walls with glazing provided by others.

Door Lite Inserts
Sidelites
Transom
Window Walls

Our system is heavily customizable, and we offer a wide variety of hardware to meet your specific needs. While our standard system includes a 12” back-to-back ladder pull, we have numerous handle options for your ideal look. We can accommodate virtually any locking function, including key, privacy, magnetic, and self-latching locks. Add an auto door bottom for sound attenuation or go hands-free with an electric operator. For a complete list, view our Hardware Options.

Clear Open Width	Door Slab Width	Finished Frame Width	Track Width	Rough Opening Width
26	34	31	63	32.5
26.5	34.5	31.5	64	33
27	35	32	65	33.5
27.5	35.5	32.5	66	34
28	36	33	67	34.5
28.5	36.5	33.5	68	35
29	37	34	69	35.5
29.5	37.5	34.5	70	36
30	38	35	71	36.5
30.5	38.5	35.5	72	37
31	39	36	73	37.5
31.5	39.5	36.5	74	38
32	40	37	75	38.5
32.5	40.5	37.5	76	39
33	41	38	77	39.5
33.5	41.5	38.5	78	40
34	42	39	79	40.5
34.5	42.5	39.5	80	41
35	43	40	81	41.5
35.5	43.5	40.5	82	42
36	44	41	83	42.5
36.5	44.5	41.5	84	43
37	45	42	85	43.5
37.5	45.5	42.5	86	44
38	46	43	87	44.5
38.5	46.5	43.5	88	45
39	47	44	89	45.5
39.5	47.5	44.5	90	46
40	48	45	91	46.5
40.5	48.5	45.5	92	47
41	49	46	93	47.5
41.5	49.5	46.5	94	48
*42	*48	*46.5	*95	*48
42	50	47	95	48.5
42.5	50.5	47.5	96	49
43	51	48	97	49.5
43.5	51.5	48.5	98	50
44	52	49	99	50.5
44.5	52.5	49.5	100	51
45	53	50	101	51.5
45.5	53.5	50.5	102	52
46	54	51	103	52.5
46.5	54.5	51.5	104	53
47	55	52	105	53.5
47.5	55.5	52.5	106	54
48	56	53	107	54.5
48.5	56.5	53.5	108	55
49	57	54	109	55.5
49.5	57.5	54.5	110	56
50	58	55	111	56.5
50.5	58.5	55.5	112	57
51	59	56	113	57.5
51.5	59.5	56.5	114	58
52	60	57	115	58.5

Clear Open Height	Door Slab Height	Finished Frame Height	Rough Opening
80	80	80	81
80.5	80.5	80.5	81.5
81	81	81	82
81.5	81.5	81.5	82.5
82	82	82	83
82.5	82.5	82.5	83.5
83	83	83	84
83.5	83.5	83.5	84.5
84	84	84	85
84.5	84.5	84.5	85.5
85	85	85	86
85.5	85.5	85.5	86.5
86	86	86	87
86.5	86.5	86.5	87.5
87	87	87	88
87.5	87.5	87.5	88.5
88	88	88	89
88.5	88.5	88.5	89.5
89	89	89	90
89.5	89.5	89.5	90.5
90	90	90	91
90.5	90.5	90.5	91.5
91	91	91	92
91.5	91.5	91.5	92.5
92	92	92	93
92.5	92.5	92.5	93.5
93	93	93	94
93.5	93.5	93.5	94.5
94	94	94	95
94.5	94.5	94.5	95.5
95	95	95	96
95.5	95.5	95.5	96.5
96	96	96	97
96.5	96.5	96.5	97.5
97	97	97	98
97.5	97.5	97.5	98.5
98	98	98	99
98.5	98.5	98.5	99.5
99	99	99	100
99.5	99.5	99.5	100.5
100	100	100	101
100.5	100.5	100.5	101.5
101	101	101	102
101.5	101.5	101.5	102.5
102	102	102	103
102.5	102.5	102.5	103.5
103	103	103	104
103.5	103.5	103.5	104.5
104	104	104	105
104.5	104.5	104.5	105.5
105	105	105	106
105.5	105.5	105.5	106.5
106	106	106	107
106.5	106.5	106.5	107.5
107	107	107	108
107.5	107.5	107.5	108.5
108	108	108	109
